Assembling the RepRap Magnetic Rotary Encoder Board! So the extruder motor can have some nice closed loop feedback!
The Board All Soldered up

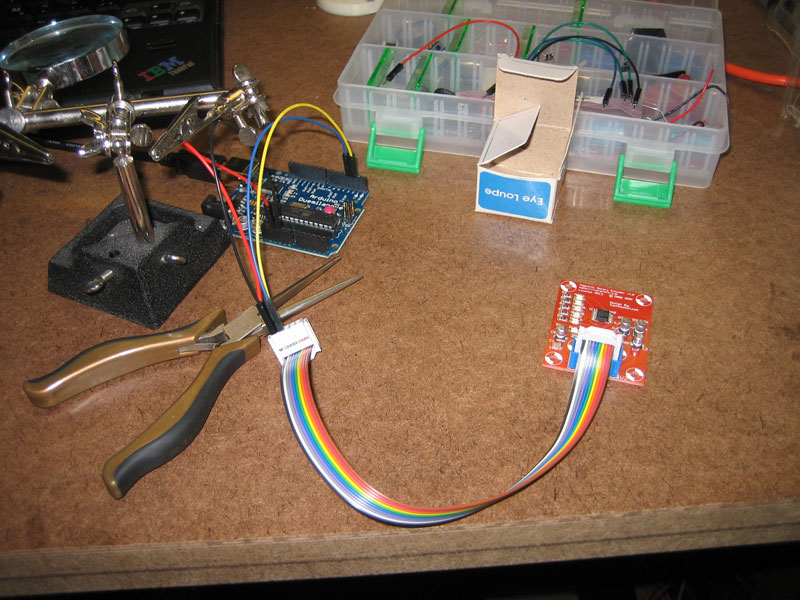

Testing it with an Arduino

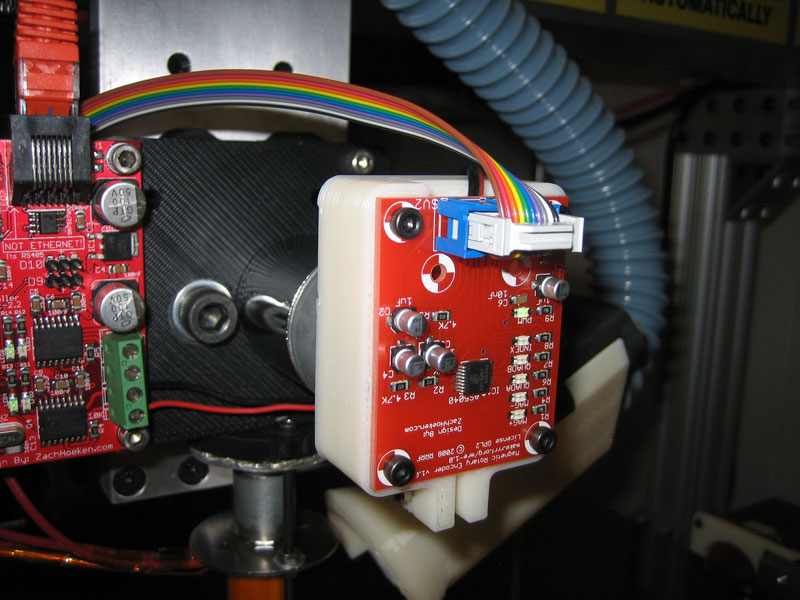

Mounted on the Extruder with the mount I printed
High Temperature and Force on Teflon? That’s no good, the heater barrel threads are going to come out of the insulator. PEEK is strong enough under these conditions and not that much more expensive.

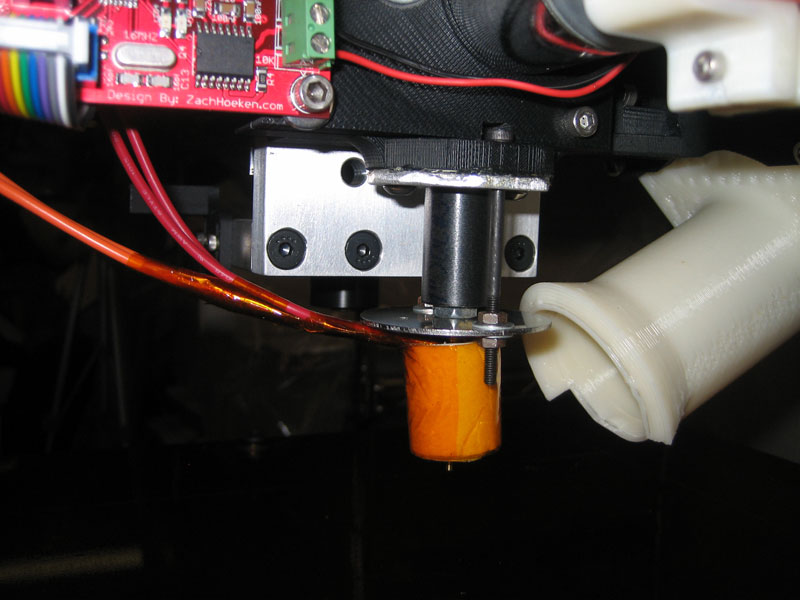

Hooray for PEEK
The Z Stage Started to move downward for no reason after I aborted a print. You can see my stages are pretty powerful as it did some serious damaged to the part. The Nozzle survived.

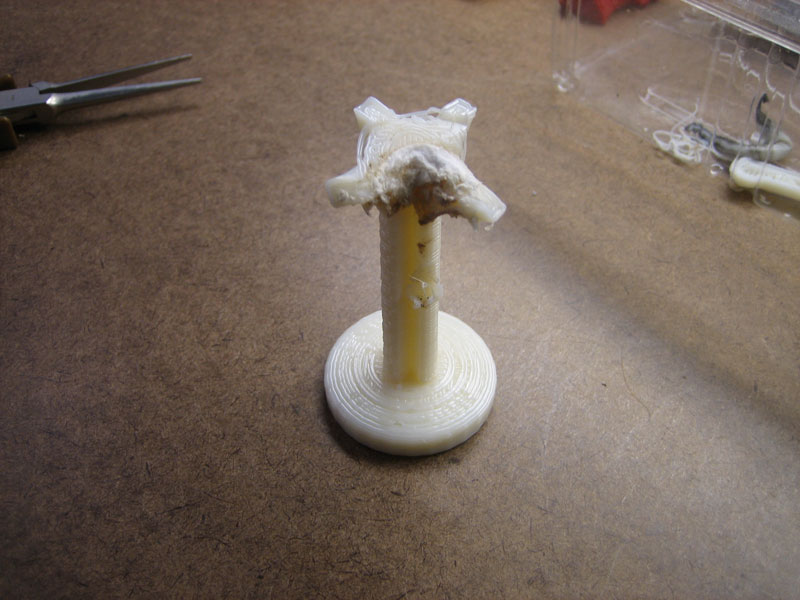

The Damaged Part

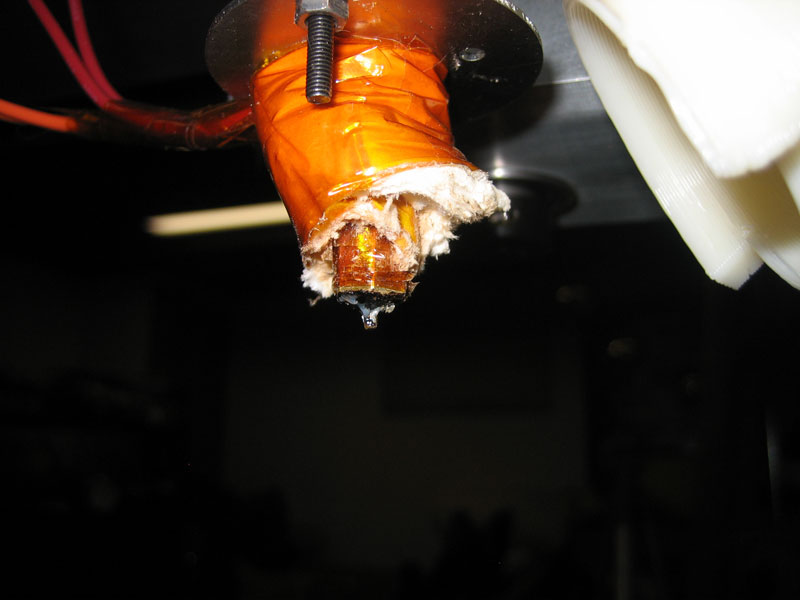

Extruder Damage
